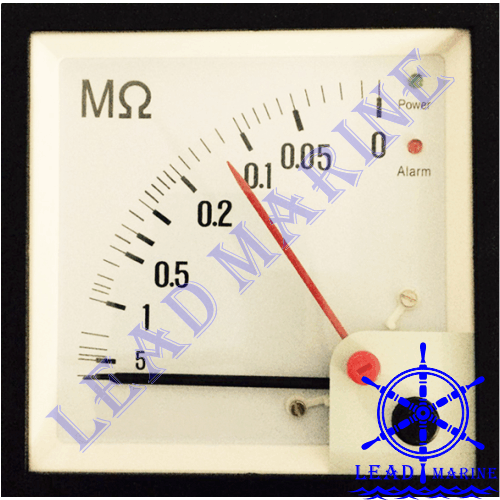

COMPLEE Net Insulation Monitor

  • AC Insulation Monitor
  • CMR Sfaif Ammeter
  • Complee DC Ammeter
  • COMPLEE Net Insulation Monitor
  • SFAIF Isolation Monitor
  • F96-BM Insulation Monitor
  • COMPLEE Voltmeter
  • F96-WB Wattmeter
  • SFAIF Q96-M Insulation Monitor
  • Complee AC Ammeter

Product Abstract:

Shanghai COMPLEE Instrument specializing in direct acting indicating analogue electrical marine net insulation monitor. Monitoring the insulation resistance of ungrounded power network on ships.


Product Description



China COMPLEE Net Insulation Monitor



Technical Specification

  • Origin:

    Made In China
  • Market:

    China, Germany, USA, Europe, Japan, Korea, Singapore, Indonesia, U.A.E., India, etc...
  • Type:

    KLY-NI72, KLY-NI96, KLY-NI144, KLY-2NI96, KLY-2NI144, KLY-NI96I, KLY-NI72I
  • Measuring Circuit:

    DC24V, AC220V, AC440V, AC230V, AC380V, AC400V, AC415V, AC450V, DC110V, DC220V
  • Measurement Range:

    0~1MΩ, 0~5MΩ, 0~10MΩ, 0~50KΩ, 0~250KΩ, 0~500KΩ
  • Indicating Angle:

    90°, 250°
  • Accuracy:

    1.5
  • Option:

    Marine Type, With Self Detection
  • Protection:

    IP54
  • Working Temperature:

    -25℃ ~ +55℃
  • HS Code:

    8516609000
  • Dimension:

    72x72x71.3mm , 96x96x71.3mm , 144x144x75mm
  • Weight:

    1.5Kg
  • Lead Time:

    Stock Available.
  • Certificate:

    ABS , BKI , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS
  • For More Information:

    Please feel free to contact with Lead Marine.
