F96-BM Insulation Monitor

  • AC Insulation Monitor
  • CMR Sfaif Ammeter
  • Complee DC Ammeter
  • COMPLEE Net Insulation Monitor
  • SFAIF Isolation Monitor
  • F96-BM Insulation Monitor
  • COMPLEE Voltmeter
  • F96-WB Wattmeter
  • SFAIF Q96-M Insulation Monitor
  • Complee AC Ammeter

Product Abstract:

Shanghai Yi Tai Instruments F96-BMΩ and F72-BMΩ marine insulation monitor widely used to monitoring the ship power net insulation resistance on the ships.


Product Description

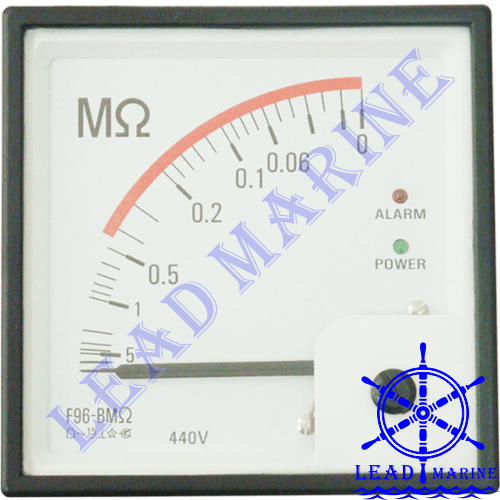

YT F96-BM Insulation Monitor



Technical Specification

  • Origin:

    Made In China
  • Market:

    China, Germany, USA, Europe, Japan, Korea, Singapore, Indonesia, U.A.E., India, etc..
  • Type:

    F72-BMΩ, F72-ZBKΩ, F96-BMΩ, F96D-BMΩ, F96-ZBKΩ, F144-BMΩ
  • Voltage:

    DC24V, AC110V, AC220V, AC380V, AC400V , AC415V , 440V, etc...
  • Measurement Range:

    0 ~ 5 MΩ
  • Accuracy:

    1.5
  • Spread Angle:

    90°, 240°
  • Working Temperature:

    -25℃ ~ 55℃
  • Protection:

    IP44 , IP56
  • Alarm Point:

    10KΩ , 30KΩ , 60KΩ , 100KΩ , 200KΩ , 500KΩ , 1MΩ
  • HS Code:

    8516609000
  • Dimension:

    48x48x65mm , 72x72x85mm , 96x96x130mm , 144x144x85mm
  • Weight:

    1.5Kg
  • Lead Time:

    Stock Available.
  • Certificate:

    ABS , BV , BKI , CCS , DNV , GL , LR , KR , NK , RINA , RS
  • For More Information:

    Please feel free to contact with Lead Marine.
